Summary: ALLCLEAR TA400 heavy-duty mobile downdraft table for welding and grinding, with automatic filter cleaning, a 2,500m³/hr airflow rate and 500kg load capacity.

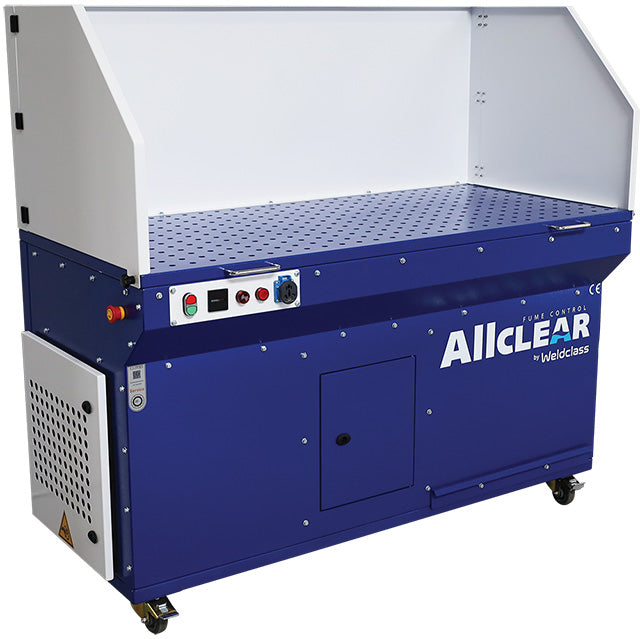

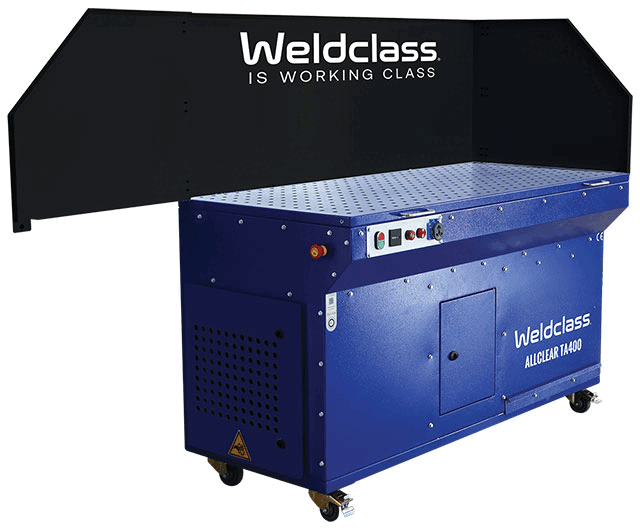

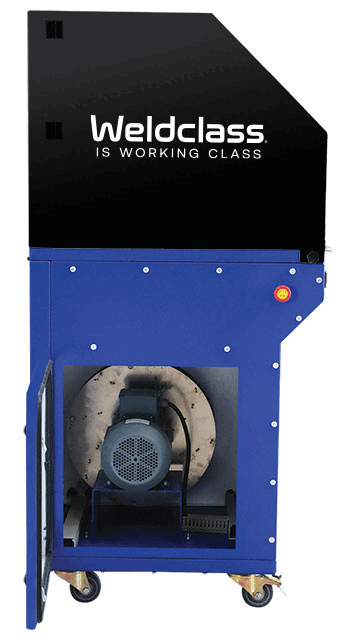

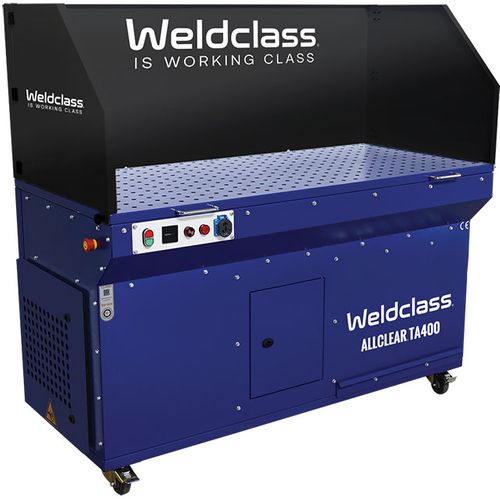

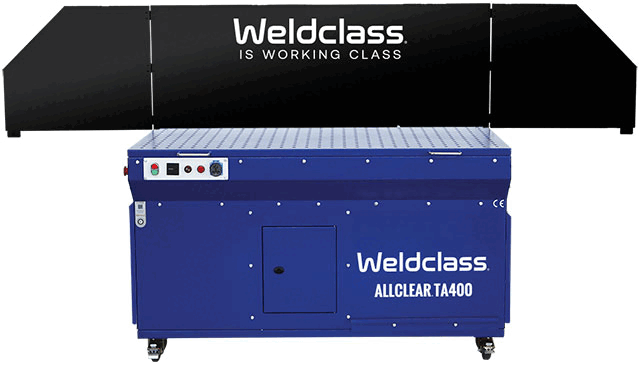

The ALLCLEAR TA400 is a heavy-duty mobile downdraft table for welding and grinding, equipped with an automatic filter cleaning system for efficient use and maintenance. It delivers an impressive airflow rate of 2,500m³/hr and highly effective fume extraction, thanks to a powerful 2.2kW motor and internal design engineered for maximum suction efficiency. The table features a spacious 1500 x 700mm downdraft workbench, 500kg load capacity, heavy-duty 5mm table top, a 10A 230V outlet for powering tools, hinged side panels, working hour counter and filter fullness indicator.
Multi-level spark filtration allows safe use with processes generating higher volumes of sparks and spatter, such as heavy grinding, welding with heavy material, or flux-cored wire. The unit is mounted on casters for mobility and operates off 3-phase 415V power.
Features
- Down-draft welding & grinding table with inbuilt filter
- Hinged left and right side panels swing back for placement of larger objects

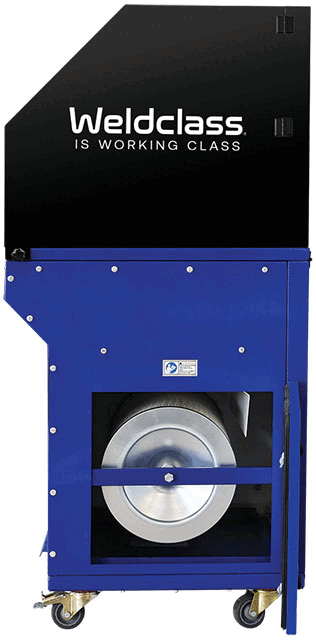

- Cleanable filter for longer filter life & reduced operating costs
- Automatic 'pulse' filter cleaning (requires compressed air supply)
- Replaceable mesh spark filter plus deflector plate to reduce burnout/fire risk and extend filter life
- Special dust collection drawer/tray for easy removal of dust
- 10A ~230V outlet at front of table for powering tools such as grinders (not suitable for welders)
- Working hour counter, filter fullness indicator, malfunction warning
- Heavy-duty 5mm coated steel table-top
Applications
- Welding, including MIG, Flux-Core, Stick, TIG
- Grinding of steel or stainless steel
- Oxy brazing and soldering
- Infrequent, light-duty plasma or oxy-fuel cutting (with precautions for table/filter protection)
Compliance & Safety
- NOT suitable for extraction of fumes containing aluminium dust, oil mist, gases, or water vapour
- Requires regular maintenance per user manual to prevent fire hazards
