Summary: The ALLCLEAR TA100 is a compact, mobile downdraft table with inbuilt fume extraction filter, designed for welding and light grinding on a single-phase 230V power supply.

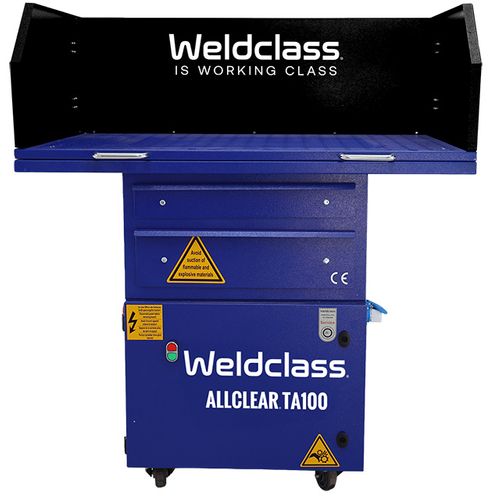

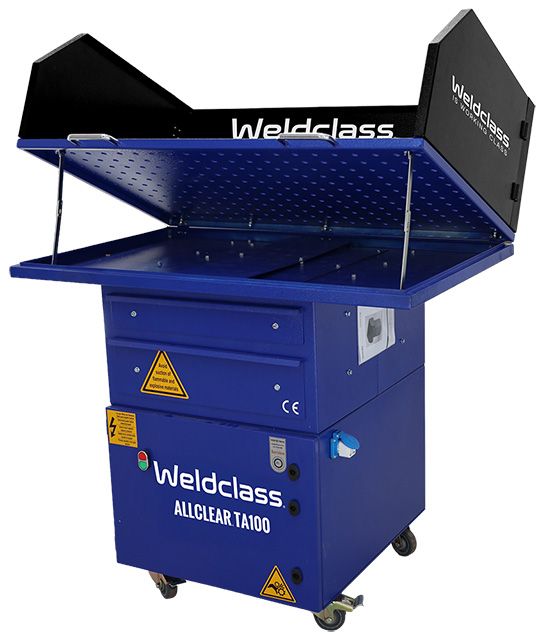

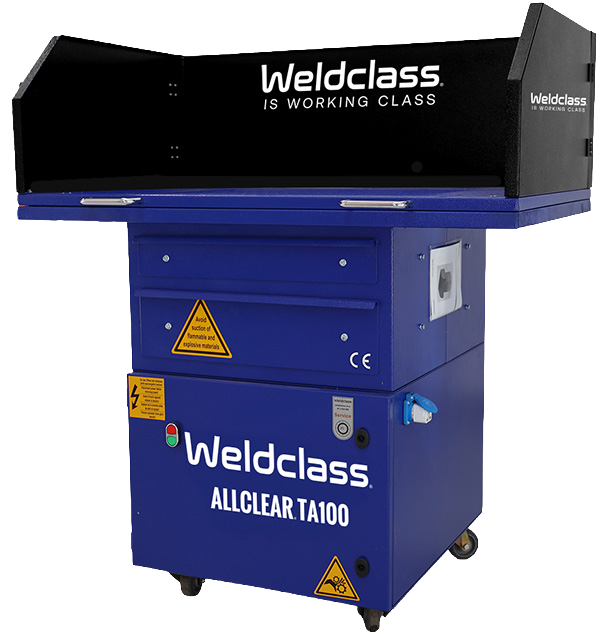

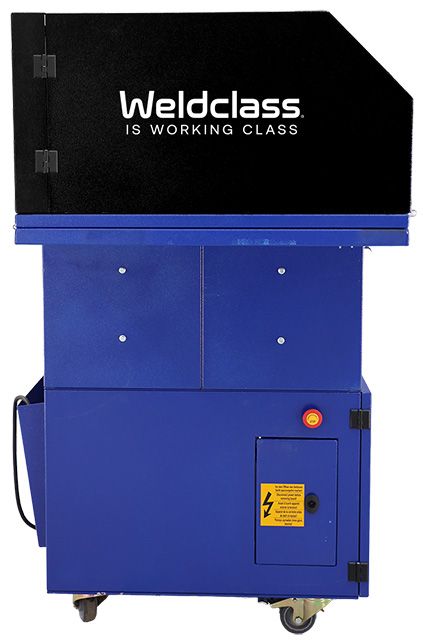

The ALLCLEAR® TA100 is a compact and ergonomic mobile downdraft table that is perfect for welding and light grinding. Equipped with a cassette-type main F9 filter plus G4 prefilter and mesh spark filter, it offers ultimate ease of use.
With a 1kW motor and 240V power supply, it generates an air speed of 7m per second on the working surface, effectively extracting welding and grinding fume particles. The rust-proof galvanised body and caster wheels provide excellent mobility for any workspace.
Features
- Compact and mobile downdraft table with inbuilt filter
- Ergonomic design with easy access to all functions and replacement filters

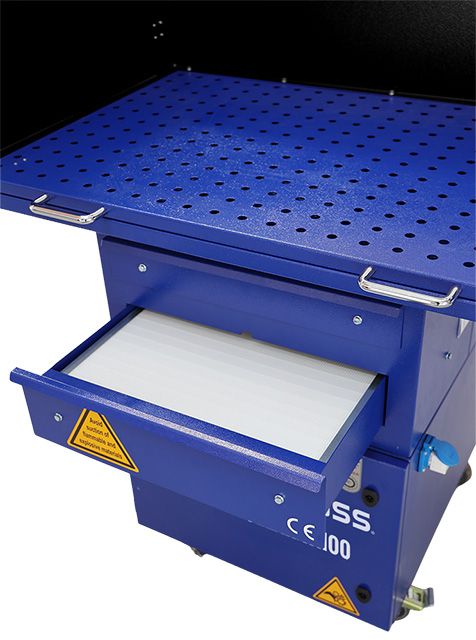

- F9 cassette / box type main filter
- G4 prefilter

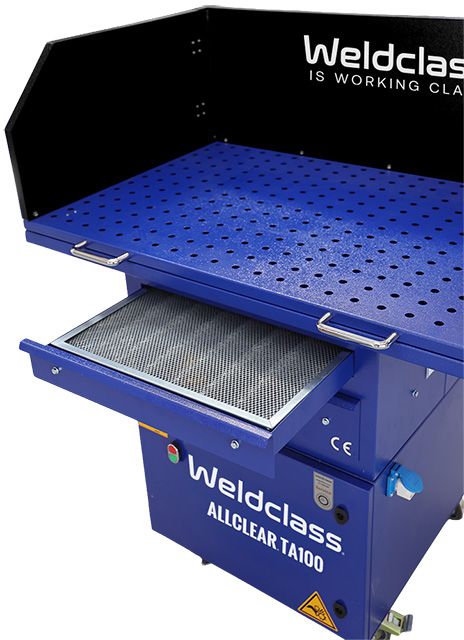

- Mesh spark filter
Applications
- Welding
- Light / occasional grinding
- Not suitable for heavier grinding or cutting (including oxy & plasma cutting/gouging) - the ALLCLEAR TA400 is recommended for these applications
- Not suitable for extraction of fumes containing aluminium dust, oil mist, gases, or water vapour
Specifications
- Power supply: Single phase ~230V 10A
- Dimensions: L700 x W1100 x H920/1255mm
- Weight: 130kg
- Load capacity: 500kg
- Motor size: 1kW
- Max air flow: 2,500m³/hour
- Average air flow at surface: 1,350m³/hour
- Air speed at surface: 7m/sec
- Noise level: 68 dBA
- Body material: Galvanised steel
