Weldclass 91005004 Fume Extractor ALLCLEAR FA25 Wall-Mount Arm Only 4m

Summary: The ALLCLEAR FA25 wall-mounted 240V fume extraction fan removes dust and fumes via a pivoting suction arm, commonly used with ducted or central filter systems.

The ALLCLEAR® FA25 fan is an efficient, cost-effective solution for removing dust and fumes, commonly used together with ducted systems where fumes are ducted externally and/or to large central extraction/filter units. This 230V extraction fan extracts airborne contaminants with minimal intrusion in tight workspaces, and its pivoting suction arm is easy to position and stays securely in place.

Choose from 3m or 4m arm lengths and features include up to 2,500m³/hr max airflow, a 150mm diameter suction hose, a 160mm diameter intake nozzle hood, temperature resistance up to 120°C, a flexible PVC suction hose with a welded steel wire coil, and a wall-mounted bracket. Note this unit is an extraction fan only and does not include a filter; it is suitable as-is for mild/non-toxic airborne contaminants and can be used for welding/grinding fumes together with a suitable filtration system.

Features

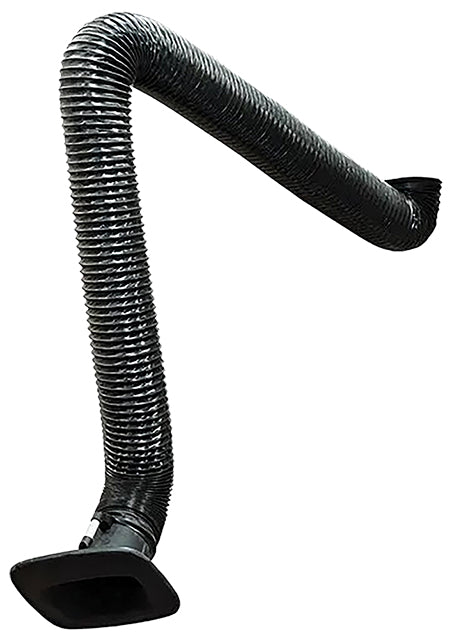

• Flexible PVC suction hose with a welded steel wire coil
• Temperature resistance up to 120°C
• Rectangular outlet on fan for easy ducting

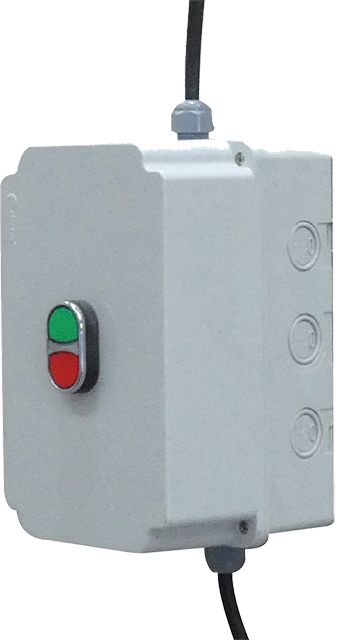

• Fan includes simple on/off control box
• Wall-mounted, for minimal intrusion in work spaces

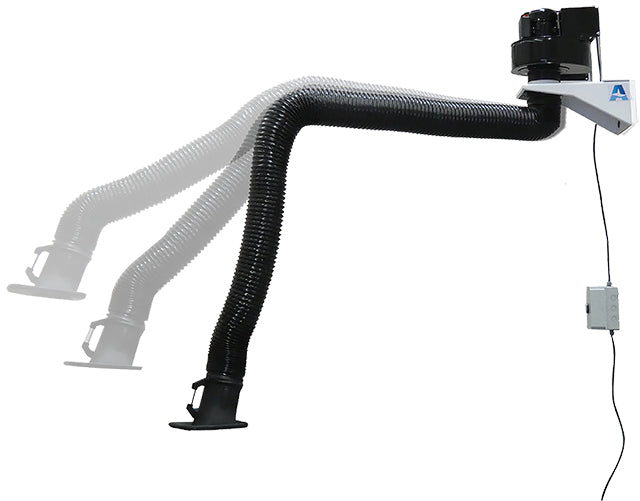

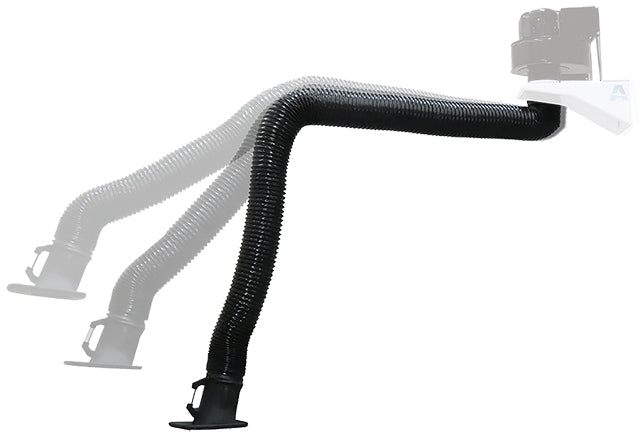

• Pivoting suction arm, easy to position and stays securely in place

What's Included

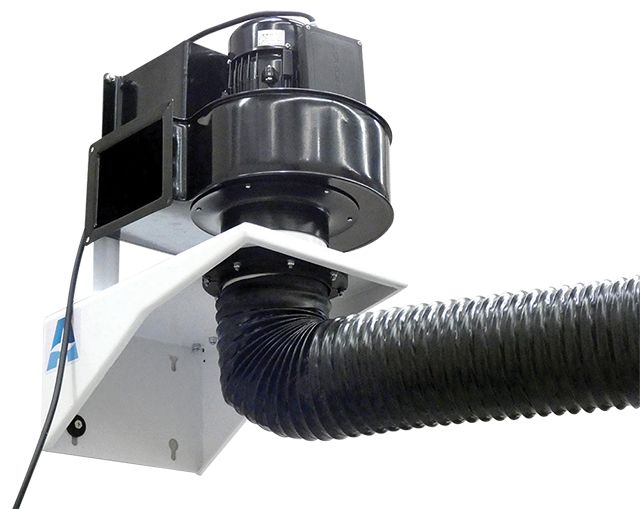

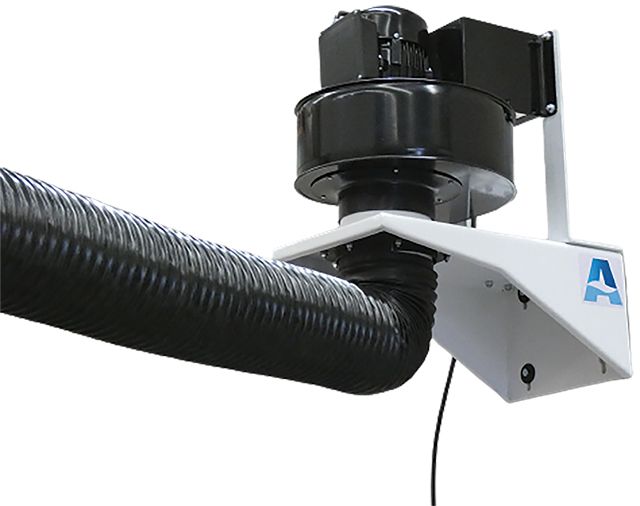

• Fan/motor with mounting bracket (assembled)
• Wall anchor bolts with paper template for hole locations
• On/off switch/control box with wires and 230V 10A power plug (assembled); wall mounting requires the switch box to be opened to allow fixing

Applications

• Removing dust and fumes, commonly used with ducted systems where fumes are ducted externally and/or to large central extraction/filter units
• Can be used for welding and grinding fumes when used together with a suitable filtration system (does not include a filter)
