Summary: PROMAX 680R welding helmet with integrated PAPR (powered air respirator) system, offering a large 95cm² auto-darkening viewing area and a 7-year warranty on the electronic lens.

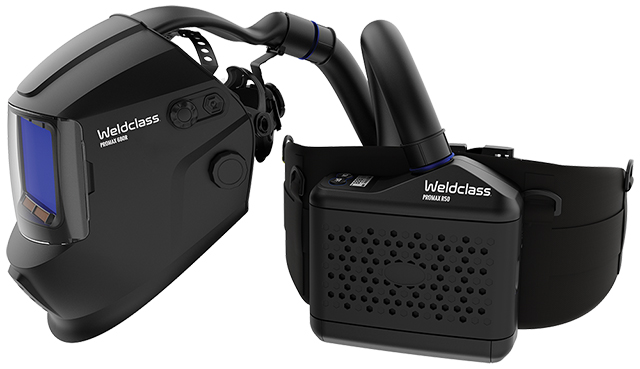

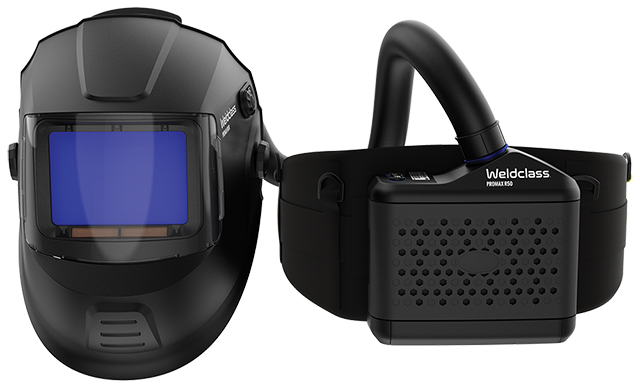

The PROMAX 680R powered air respirator welding helmet combines a comfortable, reliable Weldclass helmet with the PROMAX R50 battery-powered respirator, supplying purified air to protect against harmful welding fumes. The advanced digital lens offers an enormous 95cm² 'landscape' viewing area with ultra-crisp V1-rated optics, external shade & mode adjustment, illuminated LCD controls, and is backed by a 7-year warranty offer on the electronic lens.

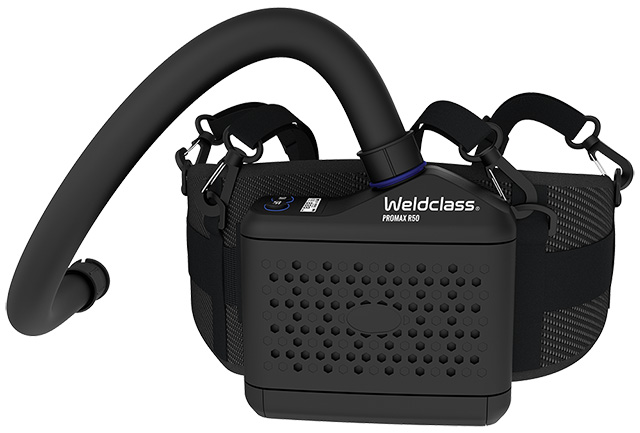

The R50 respirator features a 3-stage filter system (main particle filter, prefilter, spark filter) with TH3 (P3) grade filtration delivering ≥99.8% air particle purity, 3 selectable airflow speeds, and a Li-ion battery providing ≥10 hours of operation. Suits MIG, Stick, TIG (down to 5 amps), grinding, plasma cutting, oxy cutting/brazing/heating and gouging.
Features
- Enormous 95cm² viewing area with 'landscape' format (116mm wide x 82mm high) window
- Ultra-Crisp V1 (1/1/1/1) rated optics with enhanced colour recognition
- Illuminated digital LCD display/controls, auto shade/sensitivity/delay adjustment with memory function
- External controls for shade adjustment and mode changes without removing the helmet
- Full-laminate lens construction for superior optical quality and long service life
- Auto-on & auto-off operation, super-comfortable wrap-around headgear

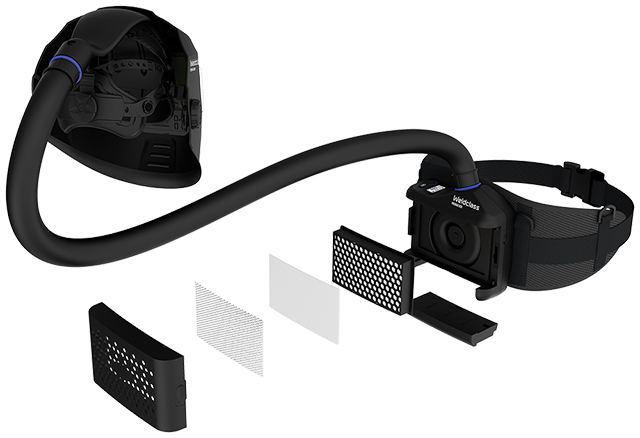

- 3-stage PAPR filter system with TH3 (P3) grade main filter, carbon prefilter and spark filter
- 3 air flow speeds (170, 200, 230 L/min) with audio, visual and vibration alerts
- Li-ion battery delivering ≥10 hours operation at 170 L/min
Applications
- MIG welding
- Stick welding
- TIG welding down to 5 amps
- Grinding
- Plasma cutting
- Oxy cutting, brazing, heating
- Gouging

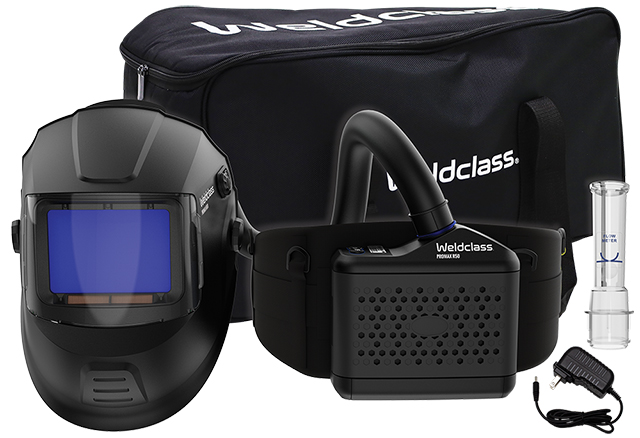

What's Included
- PROMAX 680R PAPR helmet
- PROMAX R50 PAPR respirator blower unit with battery
- Battery charger

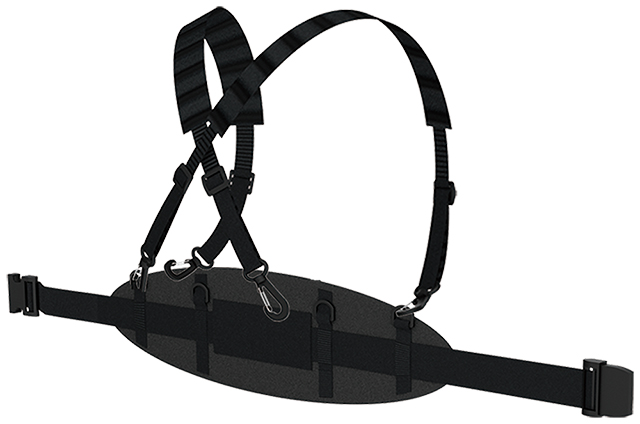

- Waist & shoulder belt/harness
- Hose with FR cover
- Clear lens starter pack
- Air flow meter/tester
- Heavy-duty carry bag
Compliance & Safety
- High-impact tested and compliant to AS/NZS 1337.1
- Auto-darkening lens complies with AS/NZS 1338.1
- Respirator complies with AS/NZS 1716
