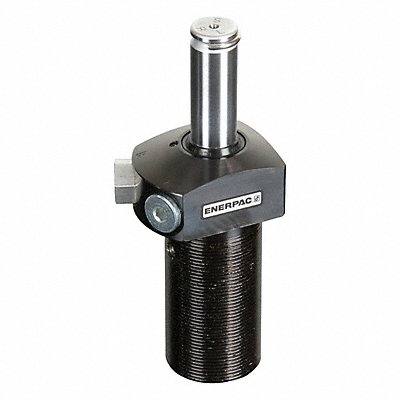

Swing Clamp Swing Body Material Steel Mounting Style Threaded Body Single Acting/Double Acting Double Acting Turns Right Clamping Force 7 600 lbf Total Stroke 1.28 in Effective Area Clamped 1.92 sq in Clamping Stroke 0.63 in Max Pressure 5 000 psi Swing Angle 90 Degrees Port Size #4 SAE Effective Area Unclamped 3.68 sq in Oil Capacity Clamped 2.27 cu in Oil Capacity Unclamped 4.35 cu in Max Oil Flow 240 cu in/min Pressure Range 500 to 5 000 psi Extended Height 8.73 in
